Solid Basket Centrifuge 25KG Capacity

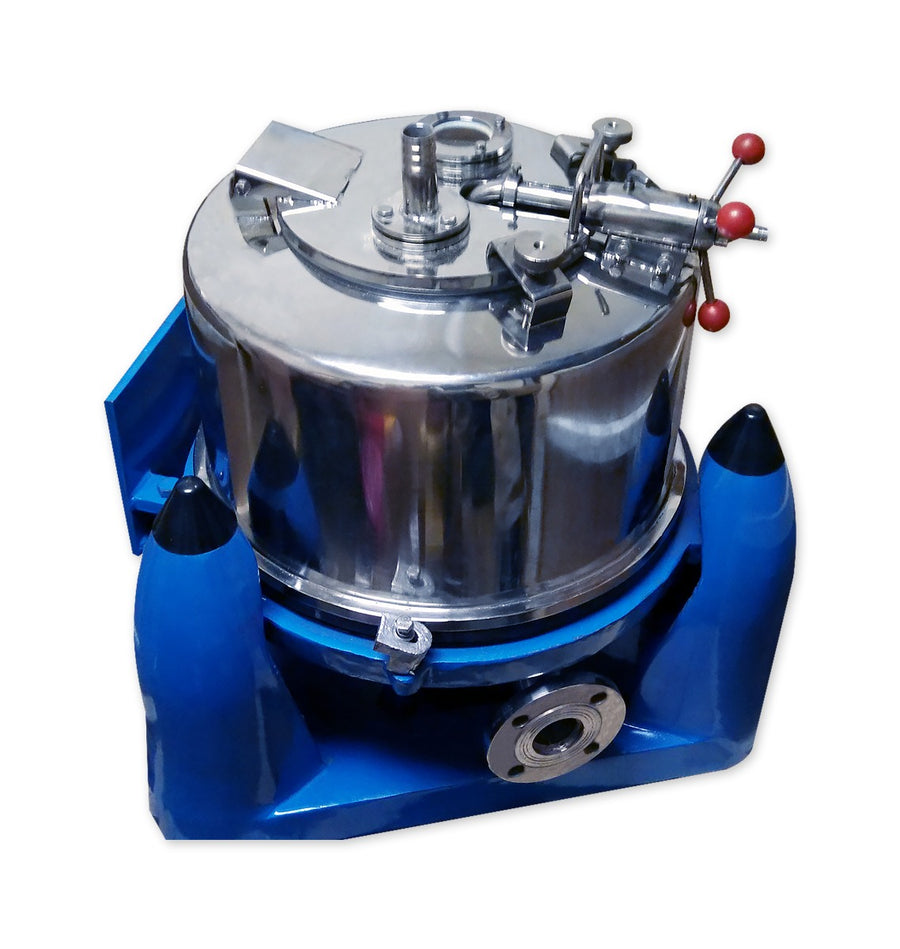

Separate large volumes of solids and liquids without babysitting the process. Raw Power centrifuges have been the mainstay of the waste oil cleaning community for years, and the same machines are now at work in algae harvesting, from high school science clubs to university labs and large research firms. This is the industrial end of that line: a 25 KG solid bowl basket centrifuge in 304 stainless steel on a cast iron frame.

How it works

The mixture feeds into the rotor through the top port in the lid. Solids collect against the bowl wall while clear liquid leaves through the retractable skimmer or overflows the bowl and drains out the bottom port. Drain plugs in the base of the rotor let the unit empty itself between runs.

This is a batch processor. You load a batch, run it until the cake reaches the dryness you want, unload, and go again.

Specifications

• Capacity: 25 KG
• Operating capacity: 20 L
• Bowl diameter: 17.7 inches (450 mm)
• G force: 910 g
• Dimensions (L x W x H): 38.5 x 28.7 x 25.6 inches (980 x 730 x 650 mm)
• Motor: 3 phase, 230V
• Construction: 304 stainless steel bowl and housing, cast iron frame

Motor options

• Standard motor (EM3558T)
• C1D1 hazardous location (XM14242T)
• C1D2 hazardous location (ECP3587T)

Other bowl and housing materials are available on custom order, and these machines are fully customizable. Tell us your process and we will tailor one to it.

Documents

• Assembly manual (PDF)
