    SKU: 1053-002

    Heated Filter Mount 1"-14

    In Stock
    Regular Price $55.08
    Shipping calculated at checkout.

    Ready to ship

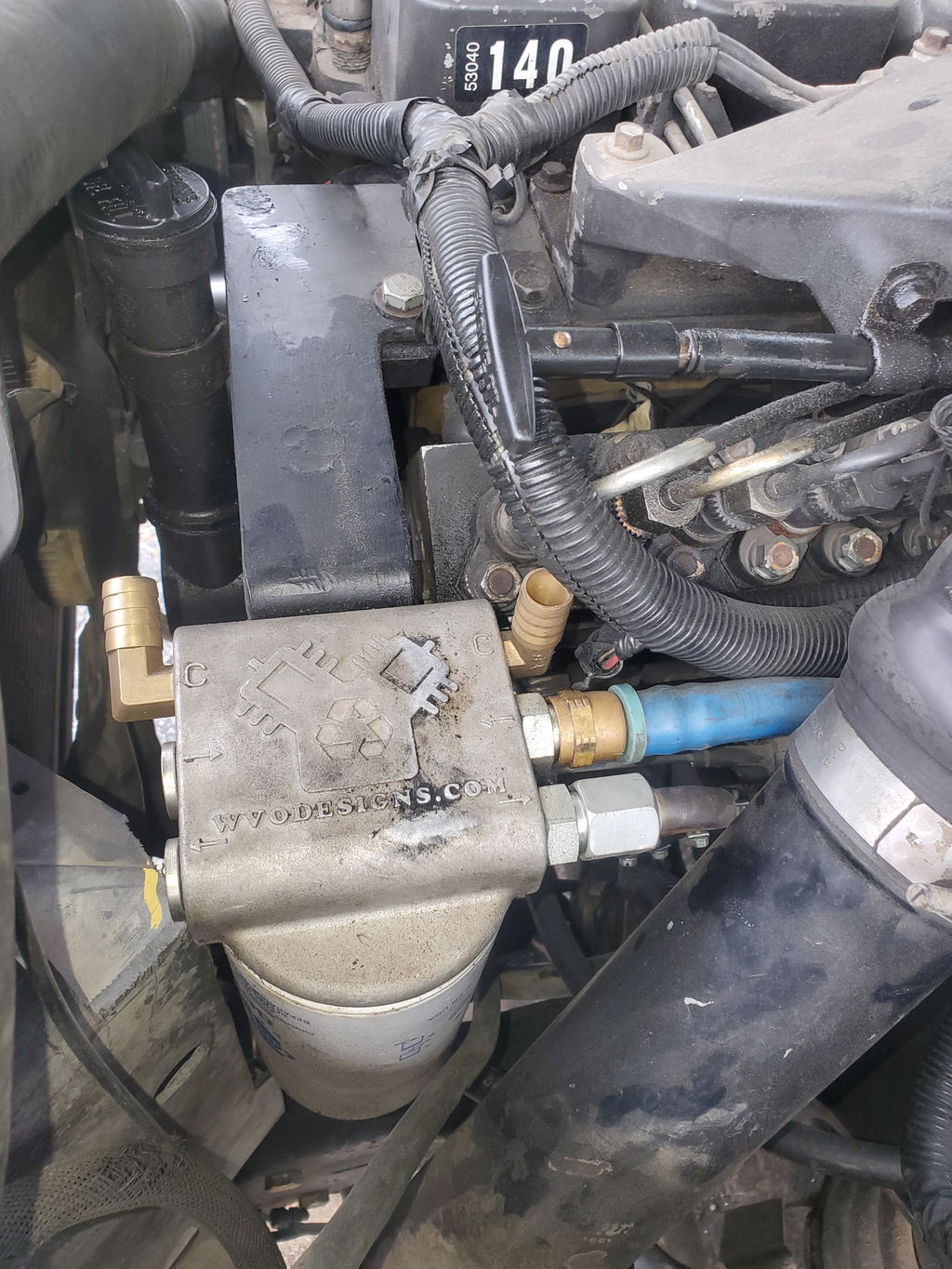

    This Raw Power heated filter head is engineered specifically for vegetable oil fuel systems. Coolant runs through the mount to add extra heat to fuel as it passes through, keeping WVO thin and flowing.

    Key Features

    • Two ports for fuel inlet (number 8 SAE/ORB) and two ports for fuel outlet (number 8 SAE/ORB).
    • Two coolant ports (1/2 inch NPT) that add extra heat to fuel as it flows through the head.
    • Extra ports can be used for fuel loops or a vacuum/pressure gauge.
    • Available in 1 inch 12 and 1 inch 14 thread sizes.

    Specifications

    • Thread size: 1 inch 14
    • Fuel ports: 2 inlet, 2 outlet, number 8 SAE/ORB
    • Coolant ports: 2, 1/2 inch NPT
    • Gasket outer diameter: 2.95 inches
    • Gasket inner diameter: 2.2 inches
    • Compatible filters: Donaldson P551000, Donaldson P555823, Napa Gold 3384, Fleetguard FF211
