32mm x 4mm Pin Wrench (AMT0306) - Replaces AMT0006

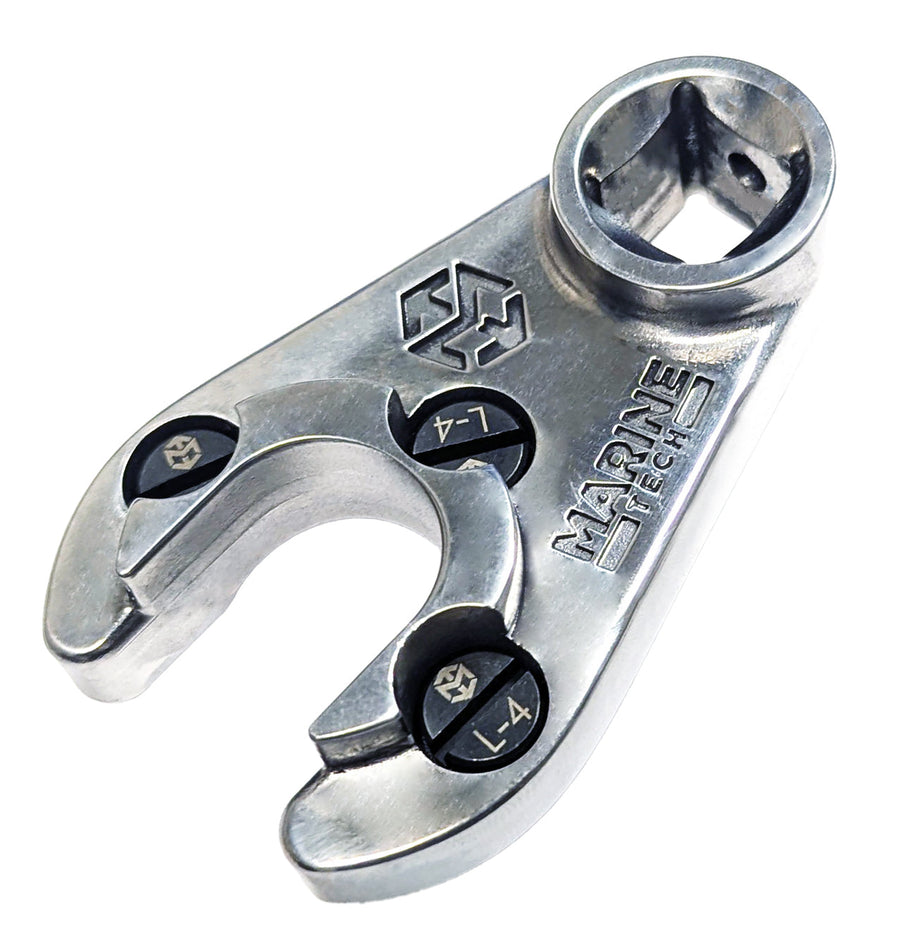

32mm x 4mm Pin Wrench (AMT0306)

The Marine Tech Tools AMT0306 is the 300 Series upgrade to the original AMT0006, engineered for removing hydraulic trim/tilt end caps on Yamaha, Honda, and Evinrude outboards. The patented sleeve-and-receiver system locks the wrench into the cap so it cannot twist out under load, letting you apply full breaker bar torque without slipping.

Compatibility

• Yamaha four-stroke trim/tilt end caps
• Honda outboard trim/tilt end caps
• Evinrude trim/tilt end caps

Technical Specifications

• Pin Stance and Size: 32mm x 4mm
• Drive Size: 1/2" socket drive
• Torque Rating: 200 ft-lb minimum yield
• OEM Crossover: Replaces Yamaha YB-06175-1A, YB-06175-2B, and YB-06548
• Replaces: AMT0006

Key Features

• Patented sleeve-and-receiver system — wrench locks into the cap using the outboard's own weight to prevent kickout
• Rated to 200 ft-lb minimum yield — pins manufactured from a proprietary material selection and heat treatment
• 1/2" socket drive — compatible with breaker bars, torque wrenches, and impact drivers
• Polished marine-grade stainless steel — corrosion resistant for saltwater environments
• Replacement pins available — L-4 Pins (AMT0050)

Use With

AMT0170 Protective Sleeve (sold separately) — required to engage the sleeve-and-receiver locking system.
