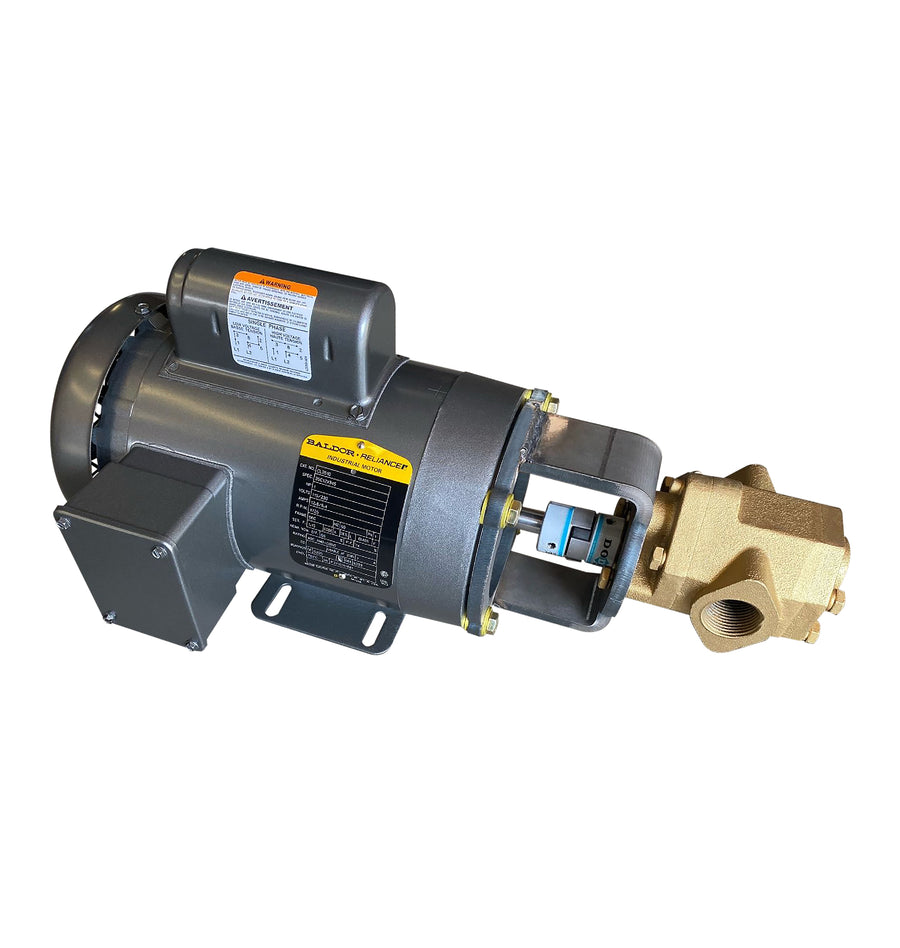

Monster 12 GPM Bare Pump - 1.5hp, 120/230V 60HZ

Bare pump assembly. No switch, no plug, no handle. This unit ships ready for hardwiring into a custom skid, control panel, or permanent installation.

This configuration pairs the GSM25 cast-iron pumphead with a stock US-Made Baldor motor at 1.5HP and 1725 RPM, producing 12 GPM. The higher horsepower at this RPM makes it well suited for medium to heavy viscosity fluids in continuous duty applications where the pump will be wired directly into a control system or panel.

If you need a plug-and-pump portable unit with a handle and pre-wired switch, see the Monster 12 GPM Portable Pump series instead.

The GSM25 Pumphead

The GSM25 is a direct-drive, cast-iron positive displacement gear pumphead with helical-cut steel gears. It is self-priming, delivers fast and pulseless fluid transfer, and relies on the fluid itself for internal gear lubrication. Viton seals provide compatibility with vegetable oils, motor oils, gear oils, and other high-viscosity fluids.

The Motor

Stock US-Made Baldor motor, 1.5HP, 1725 RPM, 120/230V 60Hz. Shipped without switch, plug, or wiring. Requires hardwiring by a qualified electrician.

Specifications

• SKU: W2093
• Pumphead: GSM25 Cast-Iron Positive Displacement Gear Pump
• Motor Speed: 1725 RPM
• Flow Rate: 12 GPM
• Self-Priming: Yes
• Port Size: 1" NPT Inlet / Outlet
• Seals: Viton (high-temp)
• Motor: 1.5 HP, 120/230V 60Hz
• Wiring: None. Requires custom hardwiring.
• Handle: Not included
• Viscosity: Medium to heavy oils

What's in the Box

• GSM25 Cast-Iron Gear Pumphead
• US-Made Baldor Motor (1.5 HP, 1725 RPM)
• Three-piece shaft coupler with rubber element
• Two (2) 1" NPT to 1.25" Hose Barbs

Note: Hoses and wands are sold separately. No switch, plug, or handle included.
