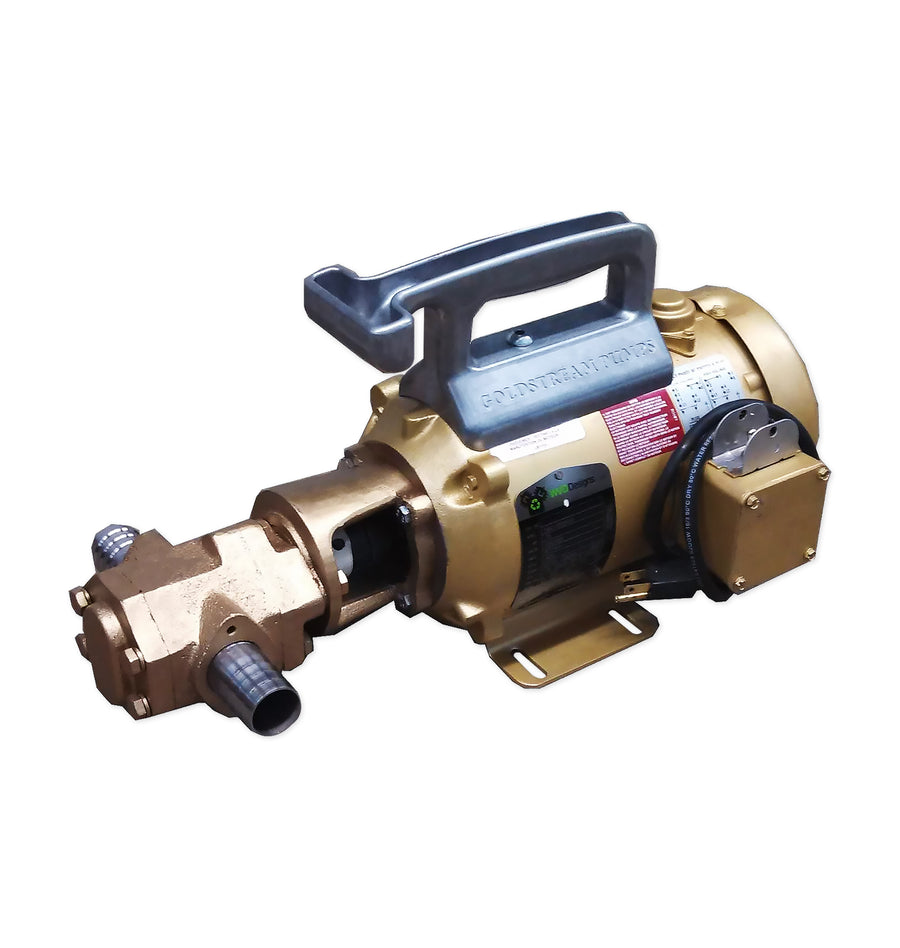

4gpm, .75hp Portable Oil Transfer Pump
WVO Designs 4gpm Portable Oil Transfer Pump, Raw Power Monster Gear Pump, Upgraded 120V Fuel Transfer Pump, Heavy Duty Oil Pump with Viton Seals on Pump Head, Custom US-Made Baldor Motors
- UPGRADED PORTABLE OIL TRANSFER GEAR PUMP 4GPM — Our previous vegetable oil pumps were less effective for pumping cold motor & gear oils. In response, we engineered the new Heavy Duty Oil Pump — a portable and efficient oil transfer pump designed for high-viscosity fluids. The transfer fuel pump upgrades include (a) a robust US-made 1700RPM Baldor motor, capable of moving motor oil and gear oil, (b) Viton seals on the pump heads, and (c) the elimination of troublesome pressure regulators.
- THE BIG STRONG MOTOR + GEAR PUMP = THE PUMP FOR WVO — featuring a heavy-duty electric motor, proudly made in the USA, with a built-in thermal overload switch and a 20-year lifespan, weighing 25 lbs. It boasts a robust 3/4 HP output and delivers four times the torque of the 3450 RPM model. It comes with a commercial-duty power switch and a 2.5 ft. power cord. The Raw Power® Monster Gear Pump is a self-priming, portable, close-coupled rotary gear pump designed to transfer heavy oils fast!
- ROCK SOLID PUMPHEAD — The Rock Solid Pumphead of our gear oil transfer pump features strong close-coupled rotary gears and delivers rapid flow rates of 4gpm. Constructed from robust 20 lbs cast iron, equipped with 1/2" NPT ports, and includes stainless steel 1/2" hose barbs, offering a reliable connection for demanding applications.
- INSANELY FAST PUMP, VERSATILE & RELIABLE — Say goodbye to the inferior fluid transfer pump. Choose the WVO Portable Oil Transfer Gear Pump for instant speed and reliability! This electric oil transfer pump handles motor and heavy gear oils effortlessly. It's self-priming and features overbuilt custom components for long-term dependability. IMPORTANT: This transfer fluid pump is not suitable for pumping water.
- BUILT TO LAST PORTABLE OIL PUMP — Based in Charleston, South Carolina, USA, our small business takes pride in our products, including this durable fuel and oil transfer pump. Backed by a 1-year warranty, we've crafted reliable heavy-duty pumps through extensive testing and development, designed to endure for years.
Tired of whimpy oil pumps?
We've gone through 4 years of development on these pumps. Upgrades have included a custom US Made Baldor motor, viton seals to the pumpheads, scrapping troublesome pressure regulators. Additionally, our vegetable oil pumps were not reliable for pumping cold motor oil, so we engineered a new Heavy Duty Oil Pump. Baldor custom made us a robust 1700RPM motor for moving motor oil, gear oil etc. Voila, a portable and fast gear pump for high viscosity fluids.
Big Strong Motor + Gear Pump = The Pump for WMO
Heavy Duty Electric Motor
*Reliable - Made in the USA, thermal overload switch, 20yr Lifespan
*Strong - 3/4HP and 4x the Torque of the 3450RPM model
*Beefy - 25lbs
Rock Solid Pumphead
*Strong - Close-coupled Rotary Gears
*Fast - 4 gallons per minute
*Beefy - 20lbs Cast Iron
*These pumps fly off the shelf and while we work hard to keep them in stock, we do run out from time to time. Buy now to ensure you have the best pump ready when you need it.
30 Day Money Back Guarantee. Feel safe when you purchase.
Additional Specs
*Dimensions: 17" long x 11" wide x 7" tall (43 cm x 28 cm x 18 cm)
*Weight: 45lbs
*Self Priming
*Suction Height: 15ft
*Push Lift Height: 90ft
*Reversible - Rewire or add a switch to allow dual directional flow!
*Viton Seals
*B100 compatible
*Temperature Rating of 210*F
*Duty Cycle: Continuous
*Priming: Self priming
*4gpm(15 liters/min): 1/2" NPT threaded ports, 1/2" hose barbs
*Pump needs oil to lubricate the gears. Will not work with water.
Motor Specs
*Commercial Duty Power Switch With 2.5 Foot Power Cord
*Thermal Overload Protection
*Output: 3/4 HP
*Speed: 1725 RPM
*Volts: 120 or 220 (comes prewired for 120)
*Amps: 8.7 @ 120 volts, 4.4 @ 220 volts
*Hertz: 60
*Shaft Size: 14 mm
*Shaft Woodruff Key: 5 mm width x 5 mm deep x 16 mm length
*Motor Base Mount: 4.5" Long x 6.56" Wide
34M185Y166G1 Info Packet
Pumphead Specs
*Bolt Pattern: 7 mm holes on a 85 mm circle
*Shaft Size: 14 mm keyed shaft
*Shaft Woodruff Key: 5 mm width x 5 mm deep x 12 mm length
*Viton Seals
*Self Priming
*Cast Iron
*1" NPT Ports
*Stainless Steel 1.25" Hose Barbs Included (fits 1.25" hose kit)
*No Pressure Regulator
Coupling Specs
*Pump Coupling: 14 mm
*Motor Coupling: 14 mm
*Size: C
*Overall Length: 1 63/64"
*Hub Diameter: 1 23/64"
*Bore Depth: 1 3/4"
*Screw Size: 1/4"-20
*Spider Element: Buna-N 27/64"
You don't need to waste money on inferior pumps any more. Buy the Portable Goldstream HD Oil Pump you'll get instant speed and reliability!
FAQs
Product & Usage
1. Are WVO Designs products built for professional use?
Yes. Every product is built for continuous duty, marine environments, and the kind of fluid-transfer work that breaks cheaper pumps.
2. Can I use a WVO Designs product for my home project?
Absolutely.
3. Can WVO Designs products be used in marine or outdoor conditions?
Yes. WVO Designs products are tested in real-world marine, biofuel, and industrial conditions — heat, humidity, and long runtimes.
Maintenance & Accessories
1. What maintenance does a WVO Designs product need?
Flush with a compatible fluid after each use and keep seals clean. That's it.
2. Can I buy replacement parts?
Yes. Products are in stock at the collection pages.
3. Do you provide installation guides?
Every product ships with a printed install guide. Digital copies and install videos are linked from each product page.
Warranty & Guarantee
1. Do WVO Designs products come with a warranty?
Every WVO Designs product is backed by our 1-year limited warranty against defects in materials and workmanship.
2. How do I register for warranty coverage?
Keep your order confirmation email — it acts as proof of purchase. You can also register your serial number in your account for faster service.
3. What does the warranty cover?
Defects in materials and workmanship under normal use — no fine print, no games. Wear items (seals, gaskets) are covered by a separate 1-year warranty.
4. What if the product fails?
Call us. We'll get you a replacement or rebuild fast — usually the same week.
Purchasing & Support
1. How fast is shipping and delivery?
Most orders ship same-day from Charleston, SC, with delivery in 2–5 business days anywhere in the continental US.
2. Do you offer bulk or corporate purchasing options?
Yes. WVO Designs offers dealer and fleet pricing — call us at (843) 972-4211 or use the contact form.
3. How can I reach a real technician?
Call (843) 972-4211 Mon–Fri, 8am–3pm EST, or email support@wvodesigns.com. No call centers.
