    SKU: RPC101

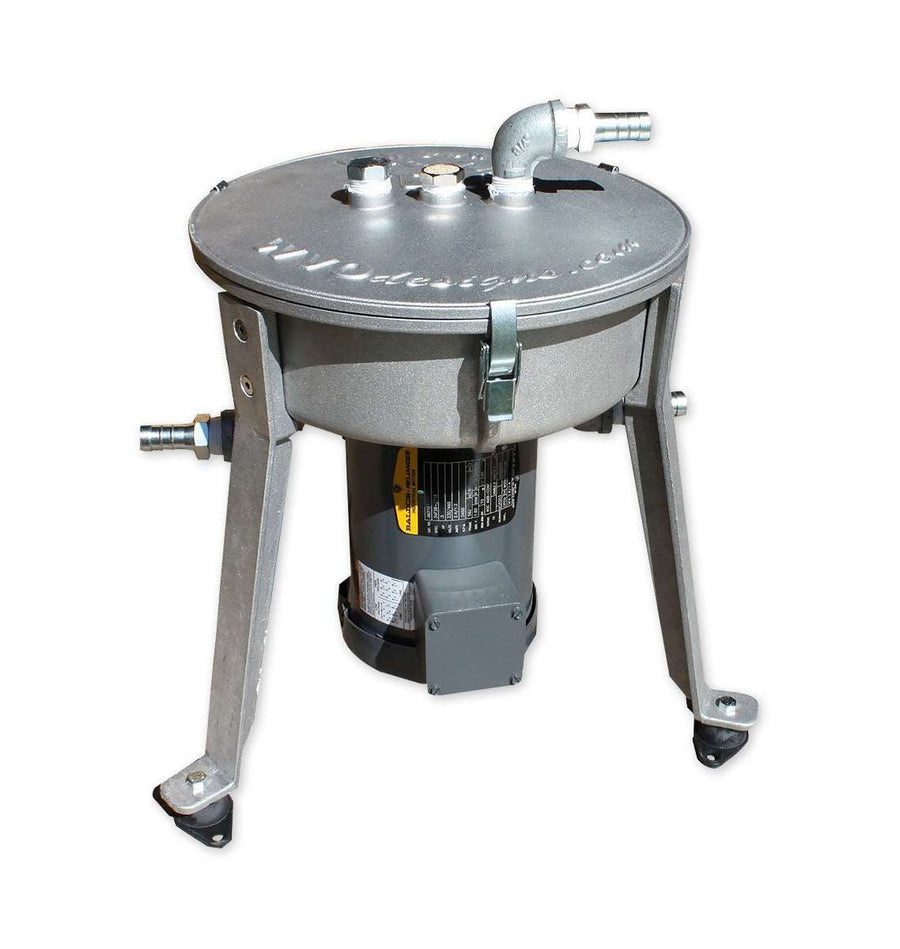

    Raw Power Centrifuge - 3450/2850RPM 120/230V

    In Stock
    Regular Price $1,882.26
    Shipping calculated at checkout.
    Voltage: 120V @60hz

    Basic Raw Power Centrifuge

    The Raw Power Centrifuge separates dirt and water from waste oil with roughly 1200 g of centrifugal force. Developed in 2008 for cleaning waste vegetable oil for diesel vehicles, it is also used with waste motor oil, cutting fluid, coolant, and algae harvesting.


    Key Features

    • No disposable filter media to buy or replace.
    • Gravity fed operation without a pressurized feed system.
    • High quality aluminum castings and a custom Baldor motor.
    • Processes waste vegetable oil, motor oil, ATF, hydraulic oil, and other fluids.
    • Rated for continuous use.
    • Responsive service and warranty support from WVO Designs.

    How It Works

    Oil enters the spinning bowl, where dirt and water that are heavier than the oil collect against the bowl wall. Cleaned oil flows out continuously in a single pass through the machine.

    Arrange your supply and collection containers for gravity flow.

    Specifications

    • Speed: 3450 RPM at 60 Hz, or 2850 RPM at 50 Hz
    • Centrifugal force: roughly 1200 g
    • Throughput: up to 25 gallons per hour
    • Power: 120/230V
    • Duty: continuous use
    • Feed: gravity fed, single pass, continuous flow
    • Fluids: water, diesel, waste vegetable oil, motor oil, biodiesel, ATF, gear oil, and more
    • Shipping package: one box, approximately 50 pounds, 20 by 16 by 14 inches

    Resources

    30 Day Money Back Guarantee

    Run the centrifuge on your own oil. If it does not prove itself in your shop, send it back within 30 days for your money back.

    Product Specifications
    Specification Name Specification Value
    Flow Rate 5-25 gallons/hour (19-95 liters/hour)
    Overall Height 18"
    Overall Diameter 18"
    Hose Fittings 3/4" hose barb fittings included
    Rated up to 400°F Rated up to 400°F
    Documents
    RPC Manual Download
