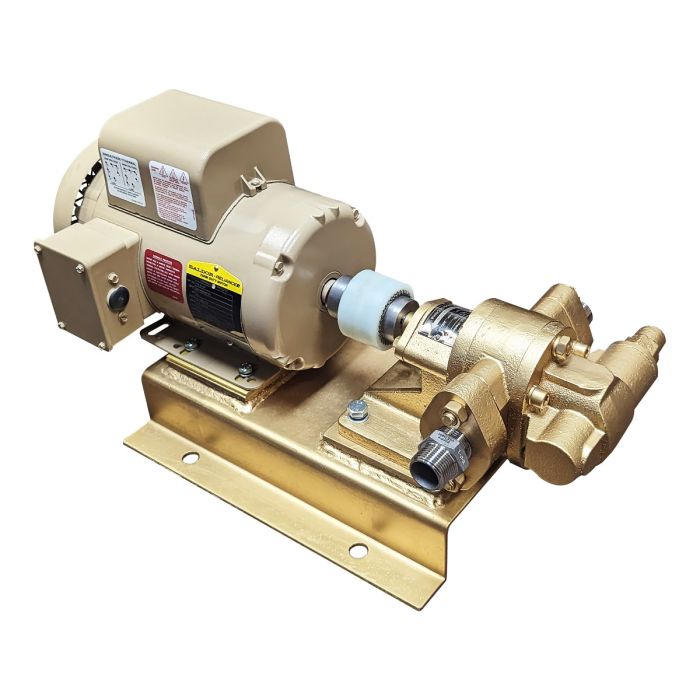

Industrial 9gpm, 120V Goldstream Oil Transfer Pump

1HP Oil transfer pump with 43psi pressure relief. Perfect for hose reel applications where flow will go to zero before the pump can be turned off (pump must still be turned off as soon as possible to prevent overheating)

Powerful 1HP Oil Transfer Pump

Heavy Duty gear pump with a massive Baldor Motor.

Features

*Self Priming - Suction height of 15ft

*Pressure Relief

*Solid Cast Iron Construction - Carbon Steel Gears

*High Quality 1HP Motor that can run on 120/220V

How they work

Twin rotary gears are set in the pump body.  One is active, the other is passive.   Active gear drives passive gear to rotate when pump works.  As gear teeth unite then sever, vacuum/suction is created in pre-chamber.  Liquid fills the gear cavities and is pushed at high pressure out from the chamber.

Safety Relief Valve

Safety valve is set from factory.    Safety valve is automatically opened when pump or output piping receive excess pressure.  Once valve opens, pressure and oil is routed back to the inlet chamber and re-circulated through the pumphead.

Not for use with corrosive liquids.  Oil Only!

Additional Specs:

Pumphead

Flow:  9gpm @ 1800rpm

Pressure relief: .33Mpa

Shaft: 20mm

Ports: 3/4" NPT

*Includes Base and Coupling

Motor

Baldor Premium Efficient or Explosion Proof

Frame: 56H

Single Phase Motor Specs

FDL3510M Info Packet
