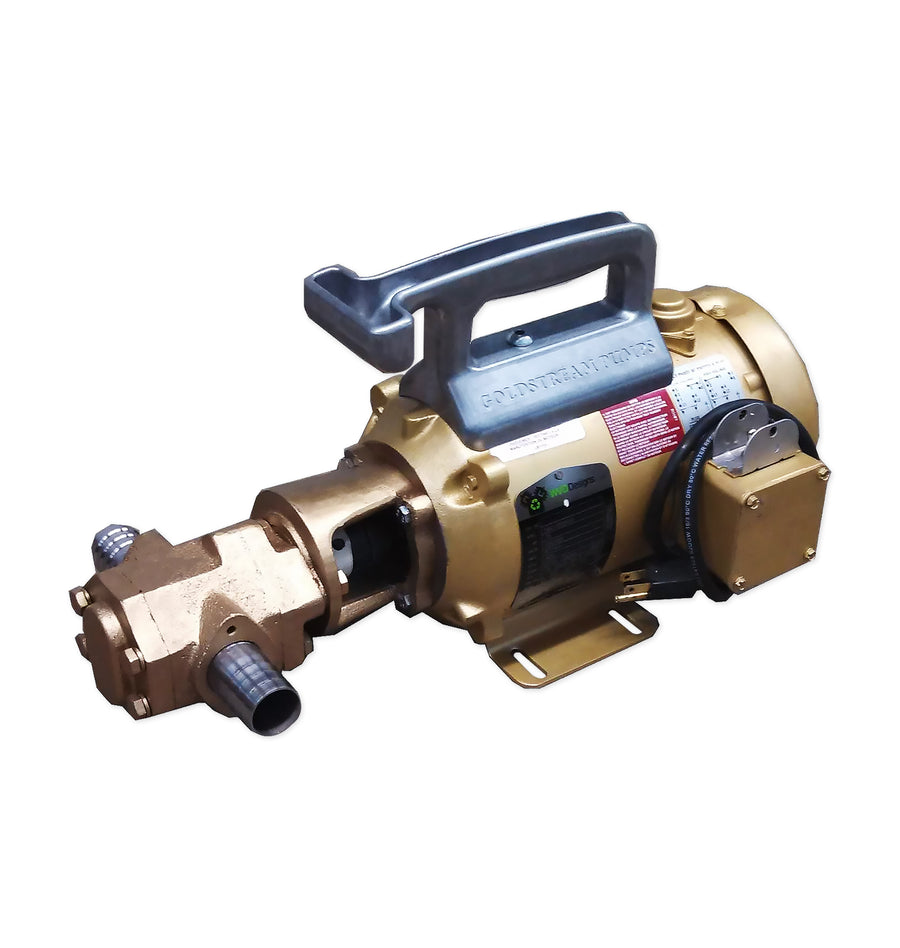

Portable 25gpm Goldstream HD Oil Transfer Pump with 3 Position Switch
Get your oil FastAre you tired of waiting with inferior pumps?
Get a Raw Power Monster WVO Pump and you don't have to waste money trying "light oil" or diesel pumps any more!
A common rite of passage for Waste Vegetable Oil users has been continually doling out large chunks of cash for pumps that barely work on waste oil. Part of the problem is that most pumps are not meant to move high viscosity liquids like vegetable oil. They stress out, blow fuses, melt and flat out implode.
Pump Development
We've gone through 4 years of development on these pumps. We've upgraded the motors to custom US Made Baldor motors, added viton seals to the pumpheads, and gotten away from troublesome pressure regulators. We now have a tried and true solution for you.
Big Strong Motor + Gear Pump = The Pump for WVO
Heavy Duty Electric Motor
*Reliable - Made in the USA, 20yr Lifespan
*Fast - 3450 RPM
*Beefy - 25lbs
*Fast - 3450 RPM
*Beefy - 25lbs
Rock Solid Pumphead
*Strong - Close-coupled Rotary Gears
*Fast - 25 gallons per minute
*Beefy - 20lbs of solid Iron
We have 100s of these pump in the field, recklessly pumping oil from behind restaurants and transferring oil across shops.
All you have to do is flick the switch and watch your oil gush at warp speed.
"Thank you Leon for producing another fine product."
"In my experiments with alternative fuels, I have tried diaphragm pumps, trash pumps, and belt driven straight gear pumps. In choosing the right pump there are always compromises like weight, fuel source, volume and mobility. Yours is by far the best overall in these. It is very fast, easy to move and the electric motor is so much better than starting an engine in most places I collect oil. I am happy to share this review and recommend this pump to my friends. I wish I had had this pump from the beginning."
Best regards,
Nolan
mortarprayer.com
Speed – Save time and headache with this insanely fast pump
Versitility – The pump is self priming, works with cold oil and is portable.
Reliability – Our custom components are over-built, and will be a dependable solution for years. We back this up with a 1yr. warranty.
Goldstream Portable pumps are now shipping with a robust handle.
*These pumps fly off the shelf and while we work hard to keep them in stock, we do run out from time to time. Buy now to ensure you have the best pump for WVO ready when you need it.
30 Day Money Back Guarantee. Feel safe when you purchase.
You don't need to waste money on inferior pumps any more. Buy the Portable Goldstream WVO Pump you'll get instant speed and reliability!
Additional Specs
*Dimensions: 17" long x 11" wide x 7" tall (43 cm x 28 cm x 18 cm)
*Weight: 45lbs
*Self Priming
*Suction Height: 15ft
*Push Lift Height: 90ft
*Reversible - Includes a 3-Position switch to allow dual directional flow!
*Viton Seals
*B100 compatible
*Temperature Rating of 210*F
*Duty Cycle: Continuous
*Priming: Self priming
*25gpm(95 liters/min): 1" threaded ports, 1.25" hose barbs
*Pump needs oil to lubricate the gears. Will not work with water.
Motor Specs
*Commercial Duty Power Switch With 2.5 Foot Power Cord
*Thermal Overload Protection
*Output: 3/4 HP
*Speed: 3450 RPM
*Volts: 120 or 220 (comes prewired for 120)
*Amps: 8.7 @ 120 volts, 4.4 @ 220 volts
*Hertz: 60
*Shaft Size: 14 mm
*Shaft Woodruff Key: 5 mm width x 5 mm deep x 16 mm length
*Motor Base Mount: 4.5" Long x 6.56" Wide
34N655S944G1 Info Packet
Pumphead Specs
*Bolt Pattern: 7 mm holes on a 85 mm circle
*Shaft Size: 14 mm keyed shaft
*Shaft Woodruff Key: 5 mm width x 5 mm deep x 12 mm length
*Viton Seals
*Self Priming
*Cast Iron
*1" NPT Ports
*Stainless Steel 1.25" Hose Barbs Included (fits 1.25" hose kit)
*No Pressure Regulator
Coupling Specs
*Pump Coupling: 14 mm
*Motor Coupling: 14 mm
*Size: C
*Overall Length: 1 63/64"
*Hub Diameter: 1 23/64"
*Bore Depth: 1 3/4"
*Screw Size: 1/4"-20
*Spider Element: Buna-N 27/64"
Just how FAST is it? Checkout this video
Raw Power Monster Gear Pump from Leon Griffin on Vimeo.
