About

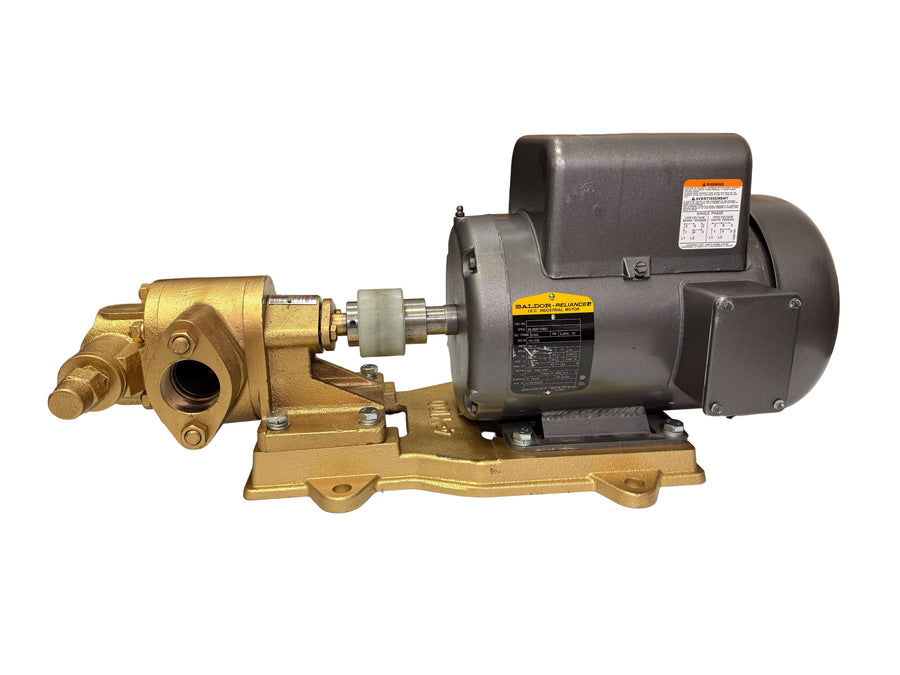

A modular, heavy-duty fluid transfer system pairing our flagship positive displacement pumphead with an industrial-grade US-Made Baldor motor.
- The Pumphead: Industrial positive displacement pumphead with pressure relief (25 GPM). Self-priming.
- The Motor: Stock US-Made Baldor Motor (3hp, 1800 RPM, 120/230V 60HZ).
- Drive System: Includes three-piece shaft coupler with rubber element.
- Out of the Box: Designed for stationary processing applications. Requires custom hardwiring.
The ultimate heavy-duty transfer system. We pair our flagship cast-iron positive displacement pumphead with an industrial-grade US-made Baldor motor for continuous fluid processing of specialized applications at a reliable 25 GPM.
Engineered to provide a truly robust, high-volume transfer solution, the Industrial Processing Series is built modularly. By combining a dedicated, heavy-duty fluid pumphead with an industrial-grade electric motor, we've created a self-priming, continuous-duty system built to excel in demanding environments and optimized for specific fluid applications.
The Heart + The Muscle (Our Modular Philosophy)
Our pumps are designed as true fluid transfer systems by pairing a specialized pumphead (The Heart) with a powerful electric motor (The Muscle). This allows us to create the perfect tool tailored for your specific viscosity and application needs.
Component 1: The Pressure-Relief Pumphead
At the heart of the system is our industrial cast-iron positive displacement gear pumphead featuring an integrated pressure relief valve. Designed specifically for processing applications, this inherently self-priming head prevents deadheading when pushing fluids through restrictions like filtration systems, centrifuges, or long plumbing runs.
Component 2: The Electric Motor
Because moving thicker fluids efficiently requires substantial torque, we match the pumphead with a power plant built to handle the load. This bare pump assembly features a Stock US-Made Baldor Motor. It is shipped without a handle or wiring, providing an excellent foundation for hardwiring the pump into a custom skid, processing system, or existing shop infrastructure.
System Performance Specifications
- System Flow Rate: 25 GPM
- Pump Design: Positive Displacement Gear Pump
- Self-Priming: Yes
- Port Size: 1.5" NPT Inlet / Outlet
What’s Included in the Box
- Industrial Pressure-Relief Pumphead
- US-Made Baldor Electric Motor (3hp)
- Three-piece shaft coupler with rubber element
- Industrial Baseplate
Note: Hoses and wands are sold separately.
