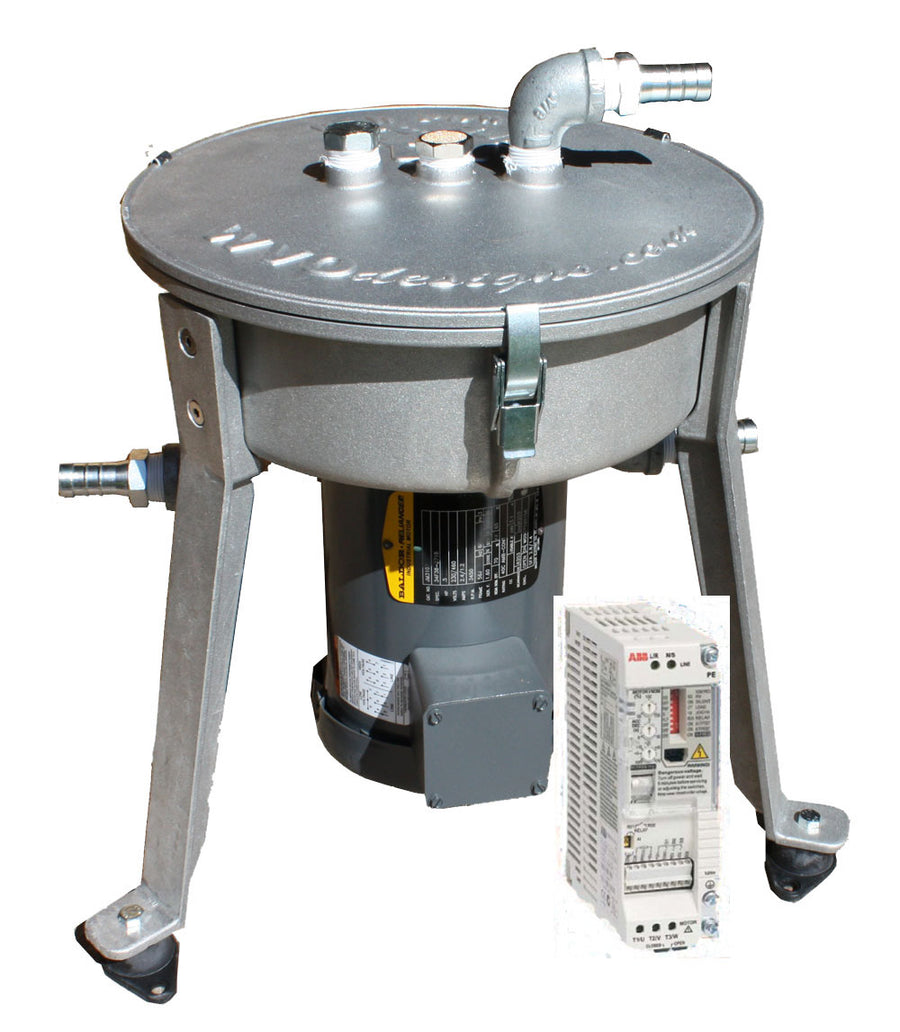

Extreme Raw Power Centrifuge
The Extreme Raw Power Centrifuge separates dirt, sludge, and water from waste oil using a bowl spinning at 6000 RPM. Roughly 3600 g of centrifugal force provides close to three times the force of the standard Raw Power model.
Key Features
- No disposable filter media to buy or replace.
- Gravity fed operation without a pressurized feed system.
- High quality aluminum castings and a custom Baldor motor rated for continuous use.
- Processes waste vegetable oil, motor oil, ATF, hydraulic oil, and other fluids.
- Smooth running motor with a sound comparable to a large fan.
- Responsive service and warranty support from WVO Designs.
How It Works
Oil enters the spinning bowl, where dirt, sludge, and water that are heavier than the oil collect against the bowl wall. Cleaned oil flows out continuously in a single pass through the machine.
Specifications
- Speed: 6000 RPM
- Centrifugal force: roughly 3600 g
- Flow rate: 5 to 25 gallons per hour, or approximately 19 to 76 liters per hour
- Power: Extreme controller supplied for 120V and 230V customers
- Overall height: 18 inches
- Overall diameter: 18 inches
- Hose fittings: 3/4 inch hose barb
- Temperature rating: up to 400°F
- Duty: continuous use
- Feed: gravity fed, single pass, continuous flow
- Fluids: water, diesel, waste vegetable oil, motor oil, biodiesel, ATF, gear oil, and more
- Shipping package: one box, approximately 50 pounds
Documents
Resources
- Centrifuge components. Learn about the motors, castings, and other parts.
- Centrifuge videos. Watch customer and reseller demonstrations.
- Customer setup gallery. Find ideas for your oil processing setup.
- Shipping information. Worldwide shipping is available.
30 Day Money Back Guarantee
Run the centrifuge on your own oil. If it does not prove itself in your shop, send it back within 30 days for your money back.
Read customer experiences in the review section below.
